:: the austin hifi blog ::: Richard Burwen and his 20,000-watt hifi system

(This is an archived post from our old blog.)

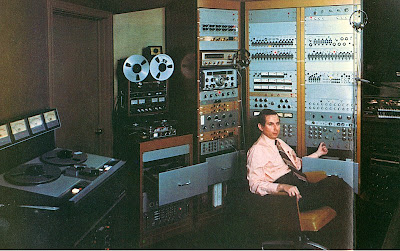

click image to enlarge

(photo from: Audio Magazine/scrounge.org)

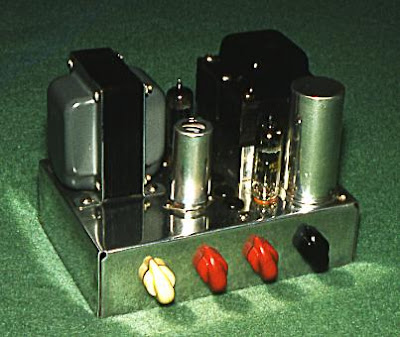

click image to enlarge

(photo from Richard Burwen's website.)

Okay, this is pretty fascinating stuff.

I realize it's pretty far off-topic for our single driver speaker blog, but anyway...

Who is Richard Burwen?

Here's his bio.

Here's just a small blurb from his bio in case you skipped the link:

Dick got into a lot of really interesting projects. Among the more challenging projects were ultra-low drift chopper-stabilized DC data amplifiers, IC multipliers and function generators, magnetometers, and low-noise switching power amplifiers. He designed circuitry of the first transistorized blood cell counter, a seizure detector for epilepsy, photoelectric relays, high resolution CRT displays, early projection color TV, a military satellite spin detector, and magnetometers for ground use and aircraft. His spacecraft magnetometer circuits successfully measured the magnetic field of the moon from orbit.

The article about Richard Burwen's 20,000-watt hifi system comes from Wayne's Speaker Building Page. The article is excerpted from Audio magazine, April, 1976. pp. 44-56 and was written by Richard S. Burwen.

click image to enlarge

(photo from: Audio Magazine/scrounge.org)

Here's a blurb about Richard's 20,000-watt hifi system:

Each of the five speaker horns is 13 ft. deep and has about 64 sq. ft. of mouth area. [i.e. 8 foot x 8 foot] The horns are conical, in preference to exponential, in order to produce a gradual low frequency rolloff, instead of a sharp cutoff. As it turned out, due to reinforcement from the room, the average low frequency response on one third octave bands is flat down to 16 Hz without equalization.
